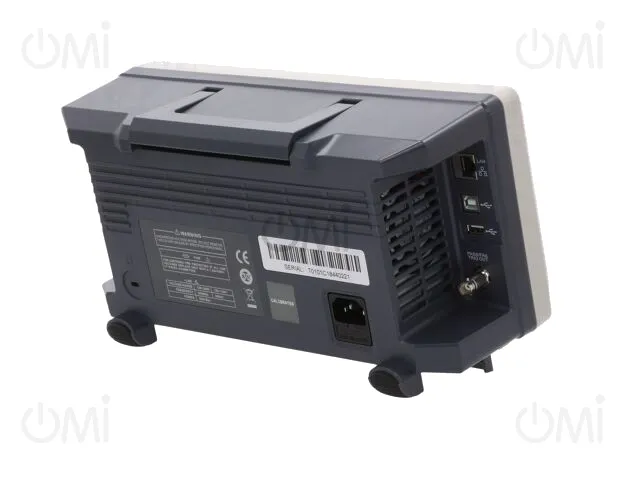

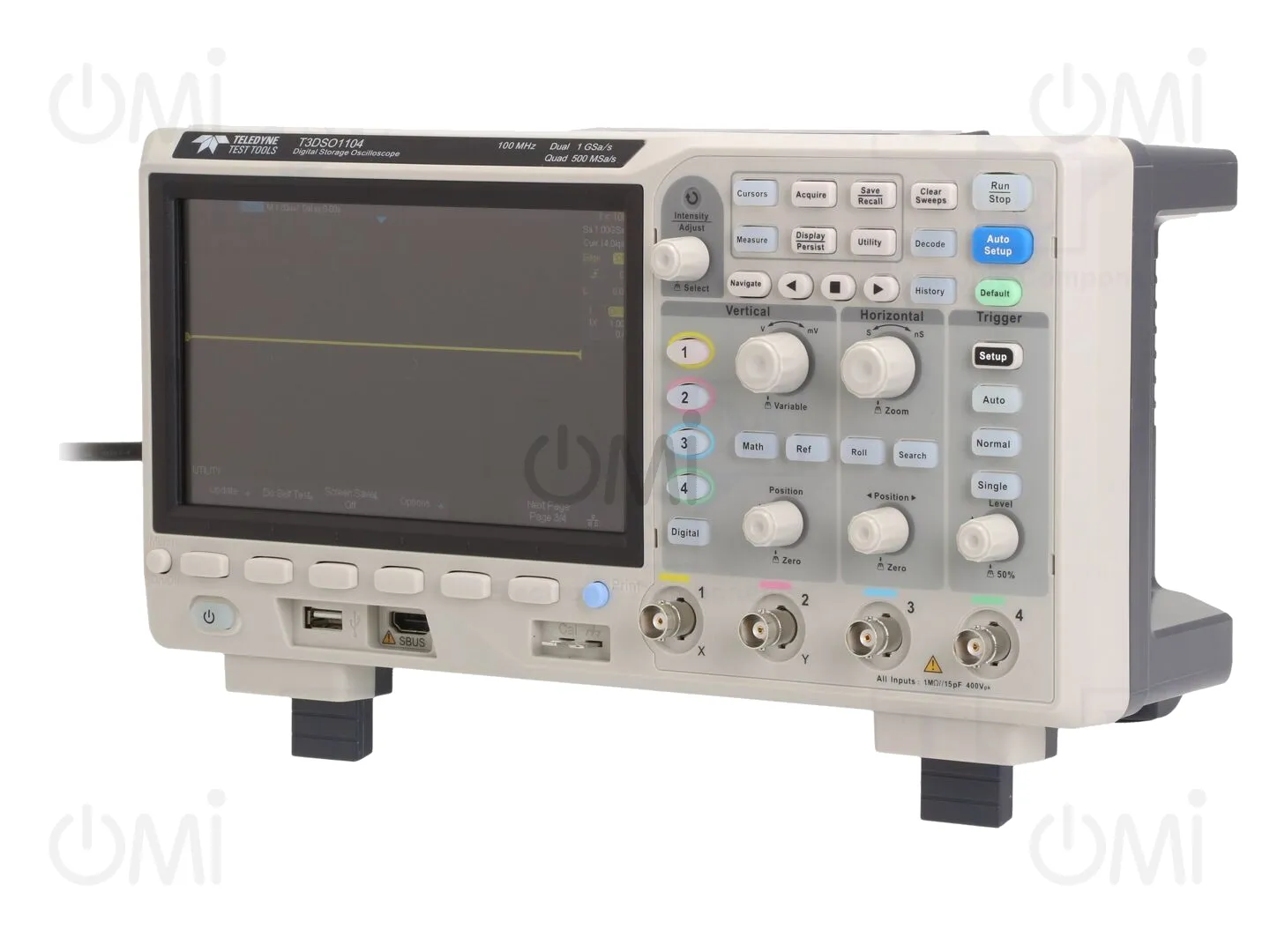

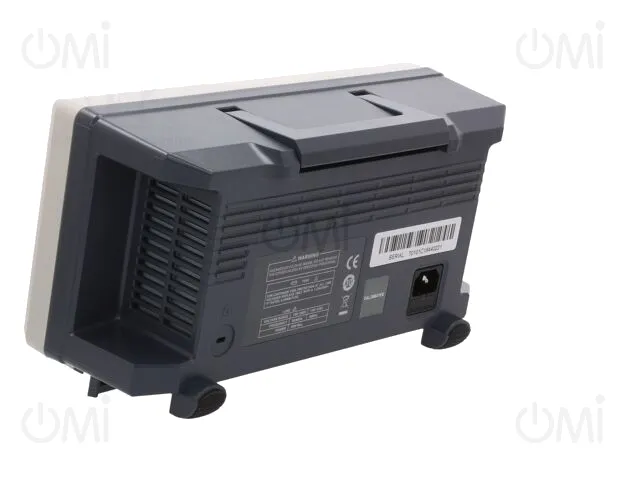

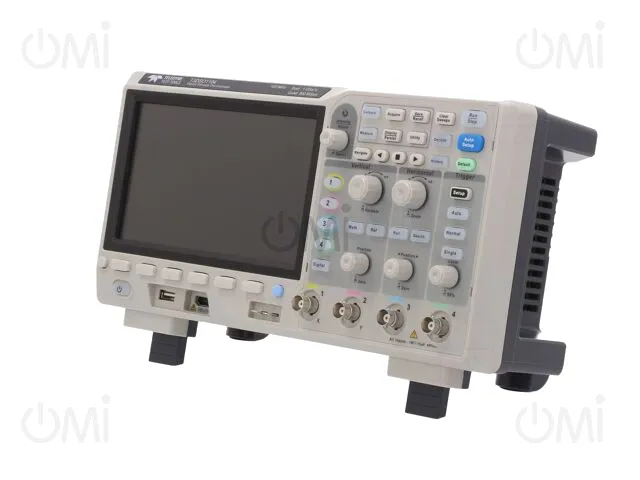

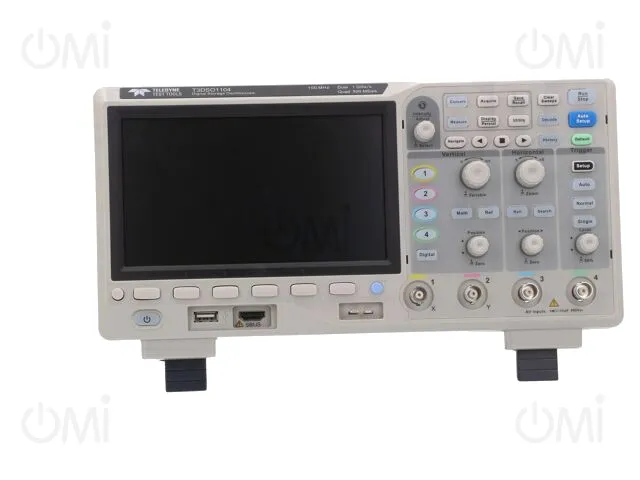

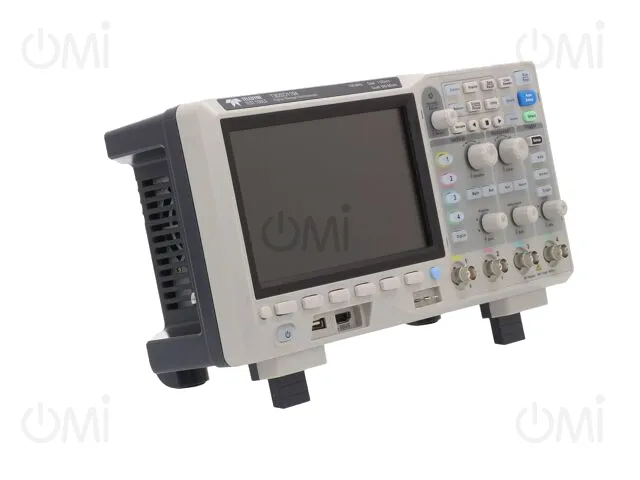

T3DSO1104 TELEDYNE LECROY

Details

T3DSO1104
T3DSO1104
T3DSO1104
T3DSO1104
T3DSO1104
T3DSO1104
T3DSO1104
T3DSO1104
T3DSO1104
  • T3DSO1104
  • T3DSO1104
  • T3DSO1104
  • T3DSO1104
  • T3DSO1104
  • T3DSO1104
  • T3DSO1104
  • T3DSO1104
  • T3DSO1104

Manufacturer product page TELEDYNE LECROY

Oscilloscope: digital; Ch: 4; 100MHz; 1Gsps; 14Mpts/ch; 1n÷100s/div

Manufacturer code: T3DSO1104

OMI code: 79535

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

3 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1244.4

Price details
T3DSO1104

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1244.4

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
TELEDYNE LECROY
Manufacturer series
T3DSO1000
Supply voltage
100...240V AC
Dimensions
312x132.6x151mm
Interface
USB, LAN
Number of channels
4
Kind of display used
colour, LCD TFT 7"
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT, defined part of displayed signal zoom, automatic measurements function
Input impedance
1MΩ/15pF
Display resolution
800x480
Sampling
1Gsps
Band
100MHz
Trigger
rising-edge, falling-edge, impulse width, video signal, dropout, window, runt, pattern width
Type of oscilloscope
digital
Vertical resolution
8bit
Trigger modes
automatic, normal, single
Max. input voltage
400V
Rise time
3.5ns
Input sensitivity
500µV/div...10V/div
Time base
1n...100s/div
Memory record length
14Mpts/ch
Supply voltage 400Hz
100...120V AC
Gross weight 4851.30 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
