MKP1J034706B00KSSD WIMA

Details

MKP1J034706B00KSSD
  • MKP1J034706B00KSSD

Manufacturer product page WIMA

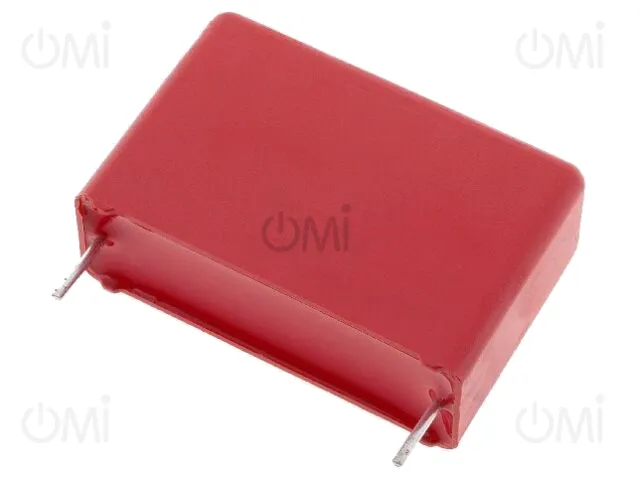

Capacitor: polypropylene; 470nF; 11x21x31.5mm; THT; ±10%; 27.5mm

Manufacturer code: MKP1J034706B00KSSD

OMI code: 8077

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 2.96
10+ 2.21
12+ 1.57
28+ 1.49

Price details
MKP1J034706B00KSSD

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 2.96
10+ 2.21
12+ 1.57
28+ 1.49

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
WIMA
Mounting
THT
Operating temperature
-55...100°C
Flammability rating
UL94V-0
Body dimensions
11x21x31.5mm
Tolerance
±10%
Kind of capacitor
low ESR
Max. operating voltage
630V DC, 400V AC
Type of capacitor
polypropylene
Terminal pitch
27.5mm
Kind of material
flame retardant
Capacitance
0.47µF
Leads dimensions
L 6mm
Climate class
55/100/56
Capacitor application
high frequency circuits, impulse circuits
Pulse resistance
700V/μs
Capacitors features
low dielectric loss factor
Gross weight 9.17 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: THT Film Capacitors
