3-1625971-3 TE Connectivity

Details

3-1625971-3
  • 3-1625971-3

Manufacturer product page TE Connectivity

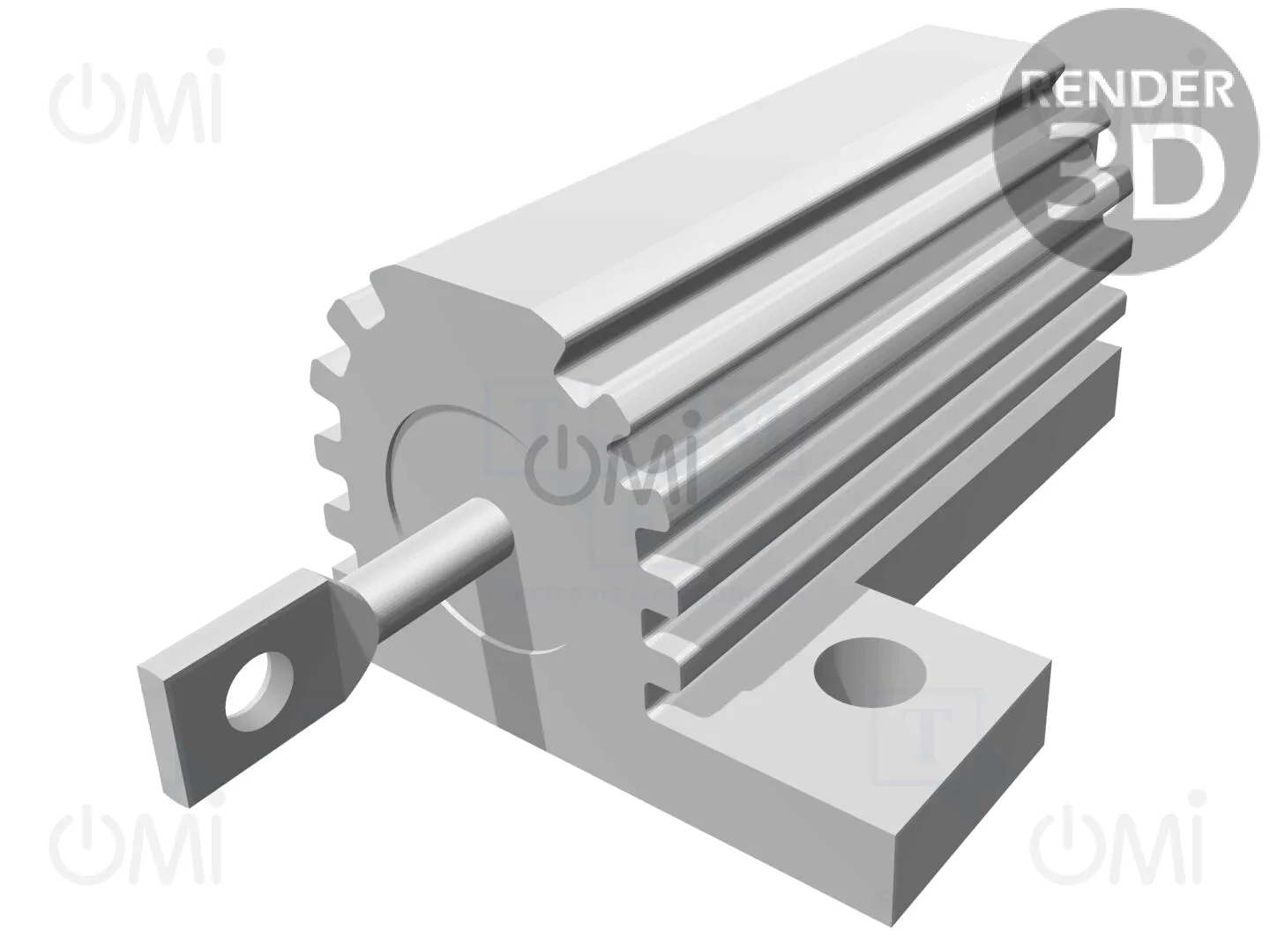

Resistor: wire-wound; with heatsink; screw; 2.2Ω; 25W; ±5%

Manufacturer code: 3-1625971-3

OMI code: 82253

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

204 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 8.32
5+ 4.14
11+ 3.92
1000+ 3.78

Price details
3-1625971-3

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 8.32
5+ 4.14
11+ 3.92
1000+ 3.78

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
TE Connectivity
Mounting
screw
Power
25W
Leads
for soldering
Body dimensions
29x28x15mm
Type of resistor
wire-wound
Tolerance
±5%
Resistance
2.2Ω
Max. operating voltage
550V
Kind of resistor
with heatsink
Mounting holes pitch
19.8x18.3mm
Temperature coefficient
50ppm/°C
Resistor features
needs additional heatsink, robust mechanical structure
Power without heatsink
12.5W
Gross weight 12.10 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Power resistors
