ERD416RSZ ECE

Details

ERD416RSZ
  • ERD416RSZ

Manufacturer product page ECE

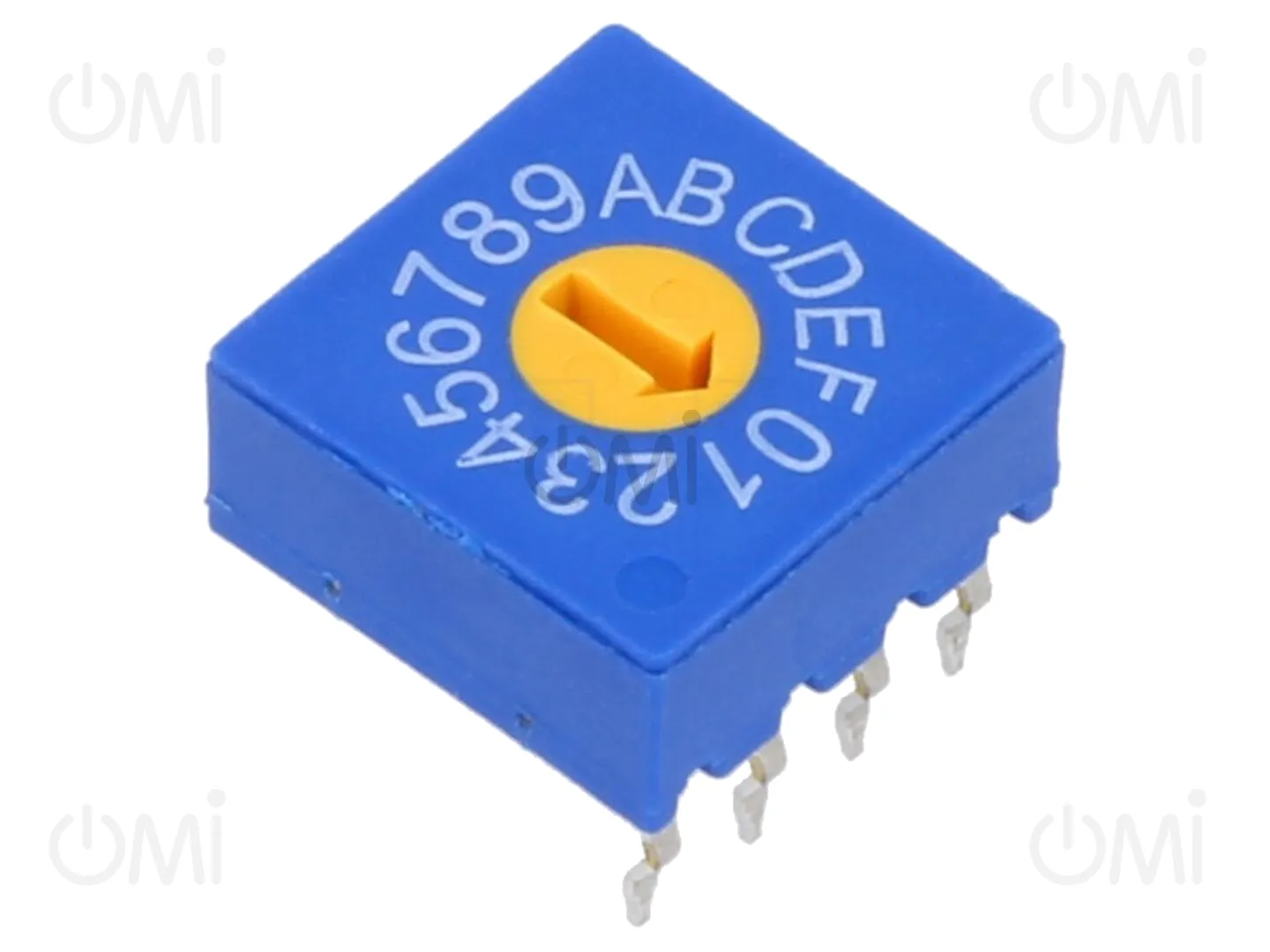

Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 100mΩ; 5Ncm; reel

Manufacturer code: ERD416RSZ

OMI code: 8281

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

90 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1.93
10+ 1.82
12+ 1.48
26+ 1.4

Price details
ERD416RSZ

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1.93
10+ 1.82
12+ 1.48
26+ 1.4

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
ECE
Mounting
THT
Type of switch
encoding switch
Operating temperature
-40...85°C
Leads
for PCB
Flammability rating
UL94V-0
Body dimensions
10x10x4.35mm
Kind of package
reel
Contact plating
gold-plated
Contact material
copper alloy
Soldering temperature
260°C / 5 s
Number of positions
16
DC contacts rating @R
0.1A / 50V DC
Terminal pitch
2.54mm
Max. contact resistance:
100mΩ
Switches features
without knob
Min. insulation resistance
1GΩ
Stable positions number
16
Switching torque
5Ncm
Gross weight 0.69 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
