D38999/24FA35SN AMPHENOL AIR

Details

D38999/24FA35SN
D38999/24FA35SN
D38999/24FA35SN
D38999/24FA35SN
D38999/24FA35SN
D38999/24FA35SN
D38999/24FA35SN
D38999/24FA35SN
D38999/24FA35SN
  • D38999/24FA35SN
  • D38999/24FA35SN
  • D38999/24FA35SN
  • D38999/24FA35SN
  • D38999/24FA35SN
  • D38999/24FA35SN
  • D38999/24FA35SN
  • D38999/24FA35SN
  • D38999/24FA35SN

Manufacturer product page AMPHENOL AIR

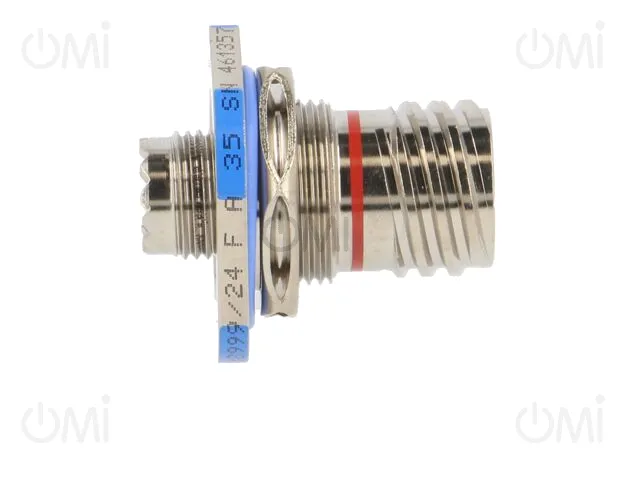

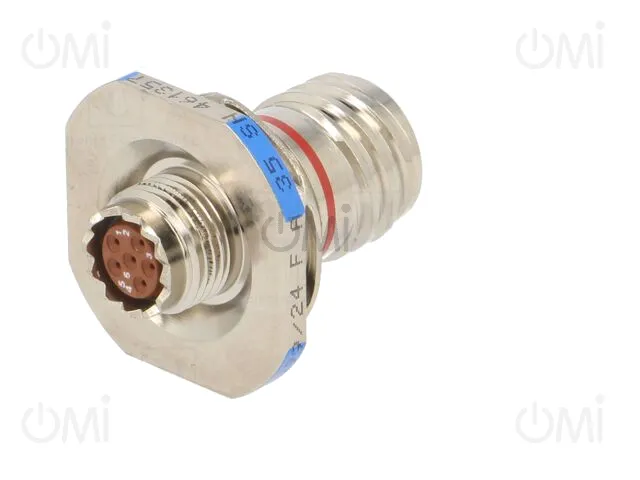

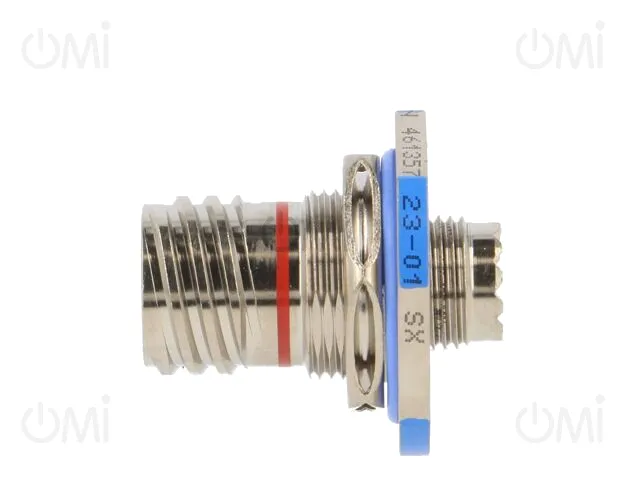

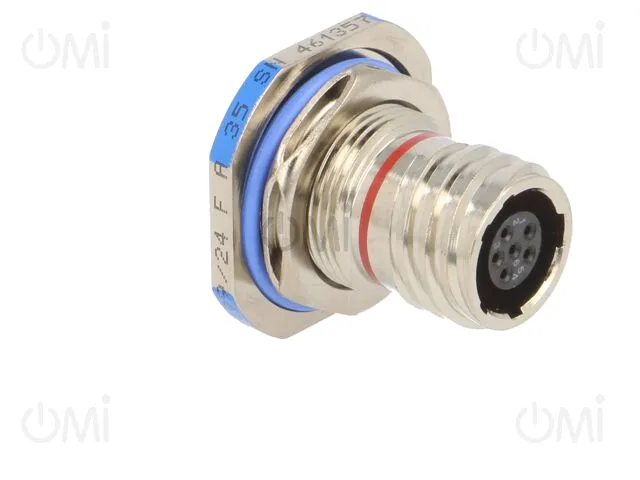

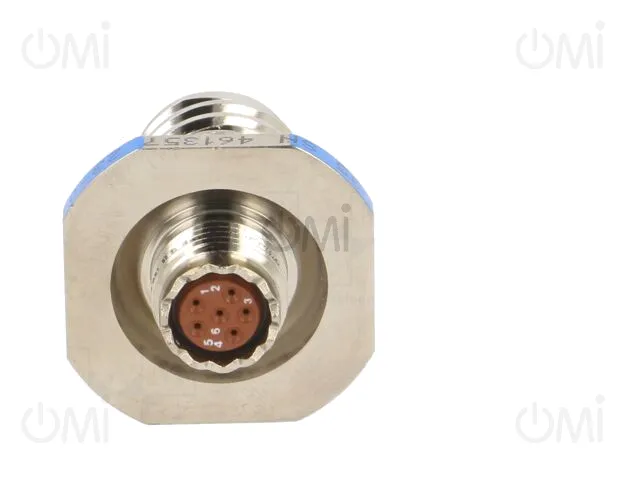

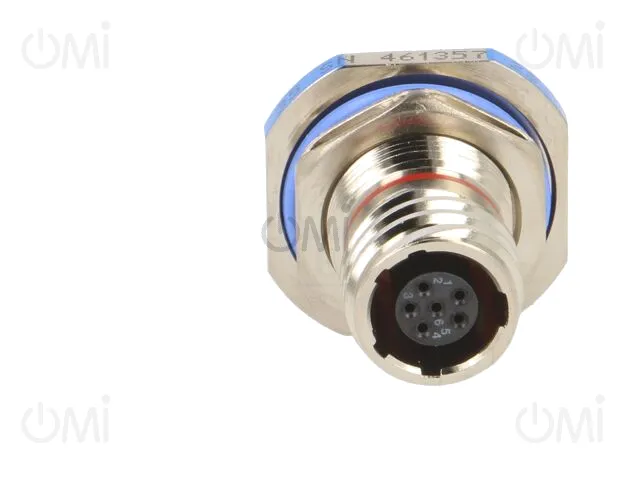

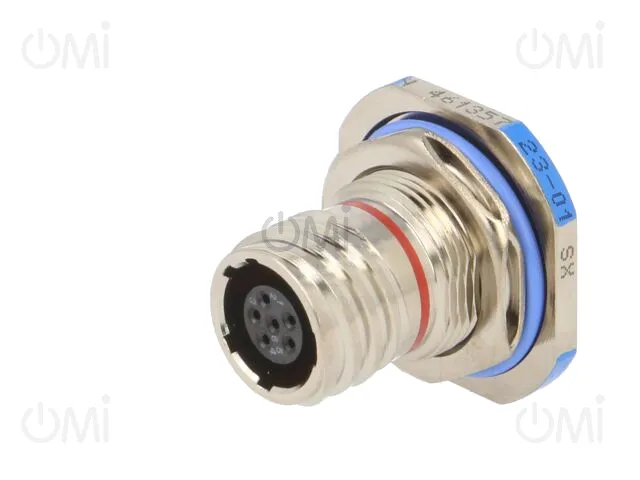

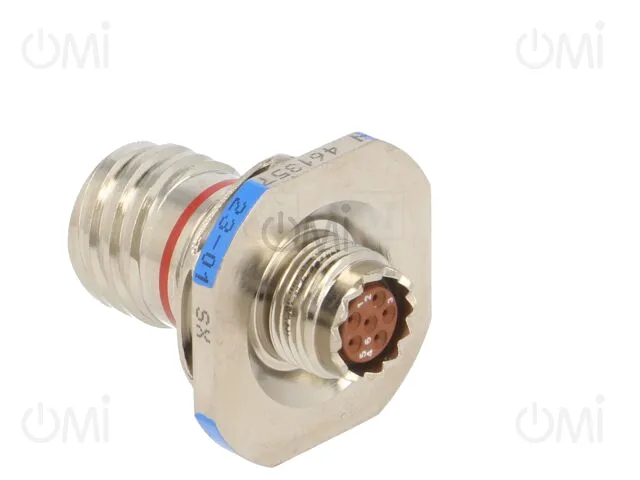

Connector: military; size 9; MIL-DTL-38999 Series III; silver

Manufacturer code: D38999/24FA35SN

OMI code: 8402

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

6 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 33.22

Price details
D38999/24FA35SN

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 33.22

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
AMPHENOL AIR
Current rating
5A
Number of pins
6
Connector series
MIL-DTL-38999 Series III
Case
size 9
Conform to the norm
MIL-DTL-38999, Military Standard
Colour
silver
Contact plating
gold-plated
Kind of connector
female
Enclosure material
aluminium alloy
Connector
socket

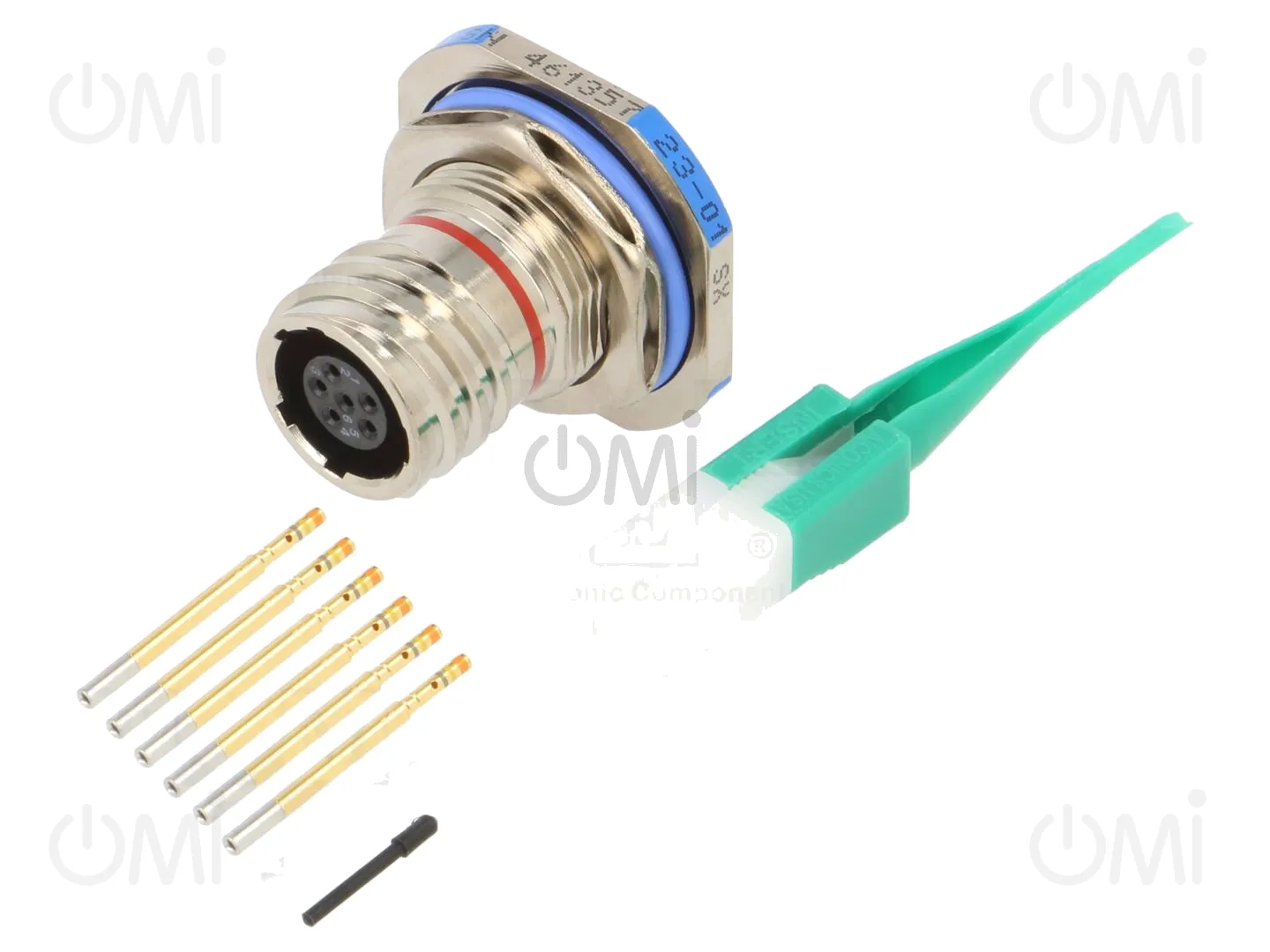

Connector variant
with contacts
Wire cross-section
0.095...0.38mm<sup>2</sup>
Locking system
external thread, threaded joint
Electrical mounting
crimped
Mechanical mounting
for panel mounting, front side nut, screwed
Wire size
28AWG...22AWG
Type of connector
military
Spatial orientation
straight
Body coating
nickel plated
Contact size
22D
Gross weight 21.40 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: D38999 Series III connectors
