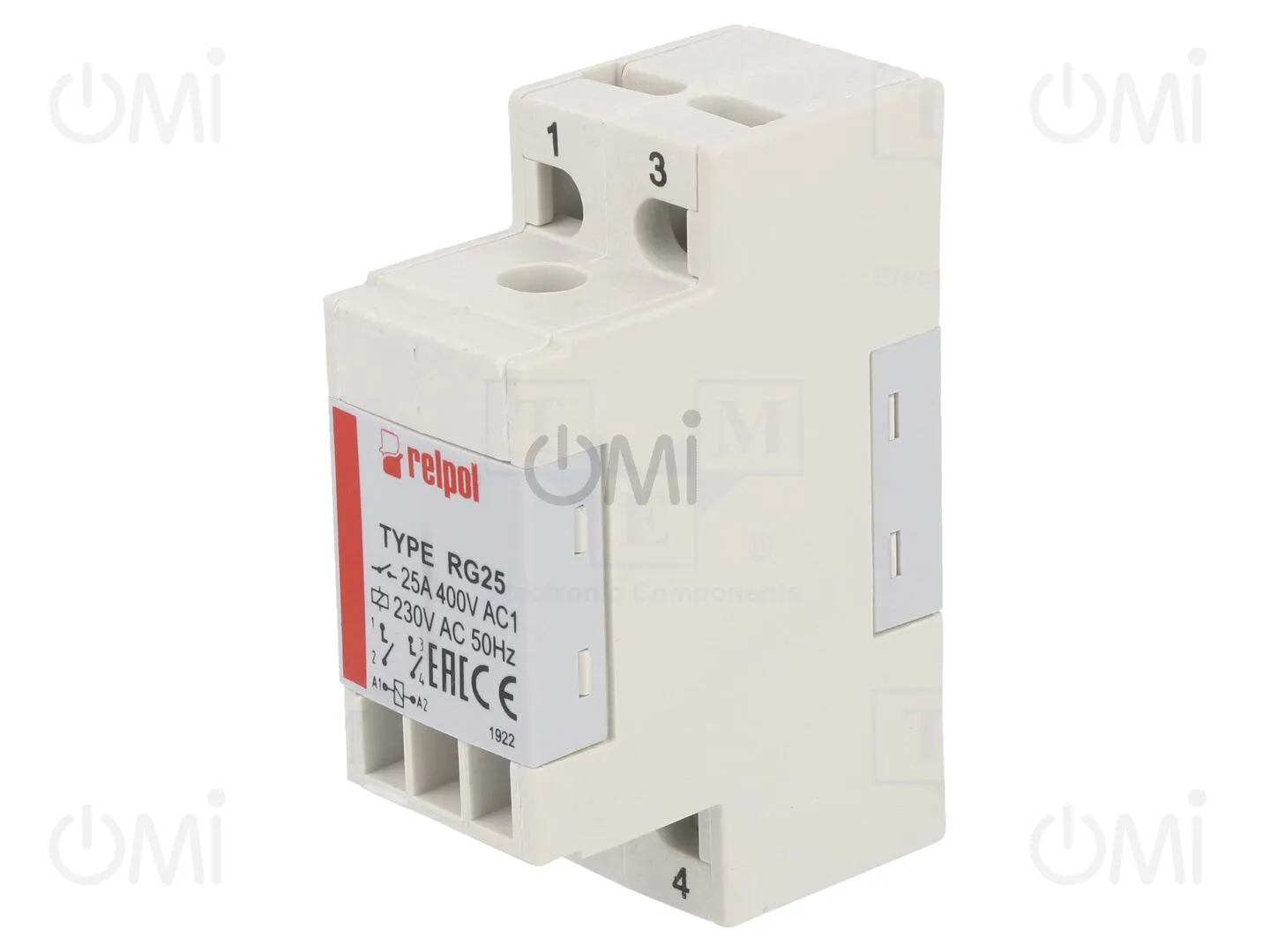

RG25-3022-28-3230 RELPOL

Details

RG25-3022-28-3230
RG25-3022-28-3230
RG25-3022-28-3230
RG25-3022-28-3230
RG25-3022-28-3230
RG25-3022-28-3230
RG25-3022-28-3230
RG25-3022-28-3230
RG25-3022-28-3230
  • RG25-3022-28-3230
  • RG25-3022-28-3230
  • RG25-3022-28-3230
  • RG25-3022-28-3230
  • RG25-3022-28-3230
  • RG25-3022-28-3230
  • RG25-3022-28-3230
  • RG25-3022-28-3230
  • RG25-3022-28-3230

Manufacturer product page RELPOL

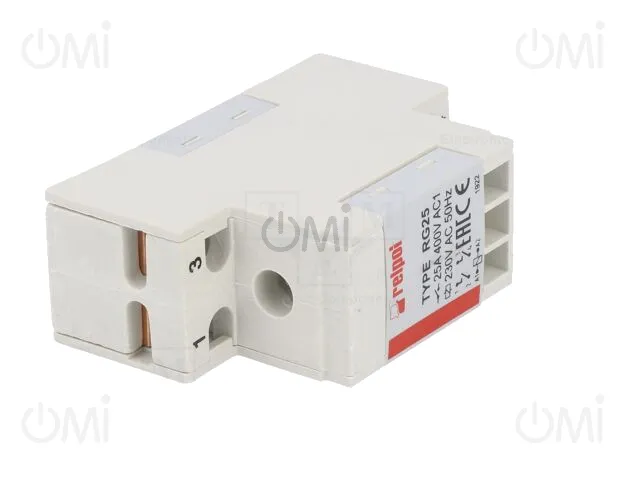

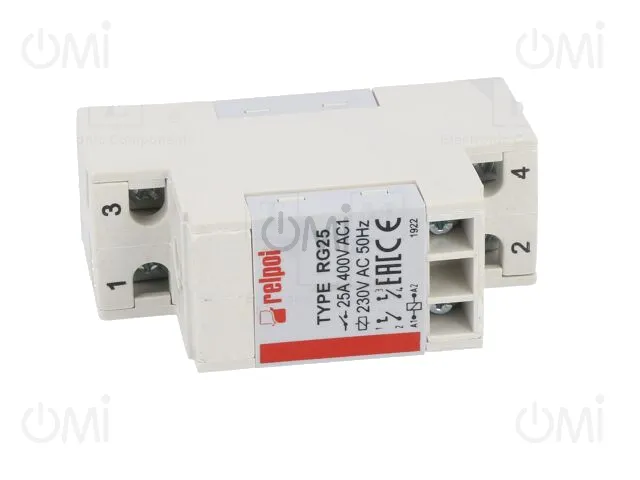

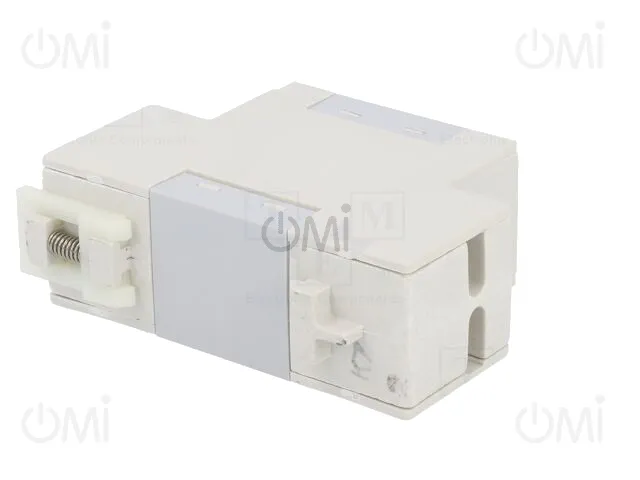

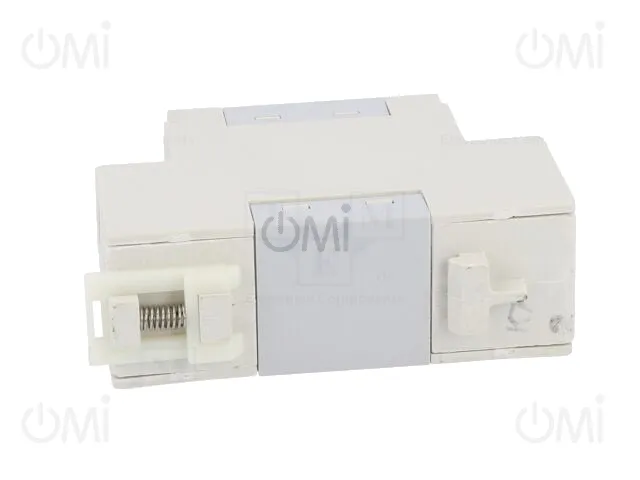

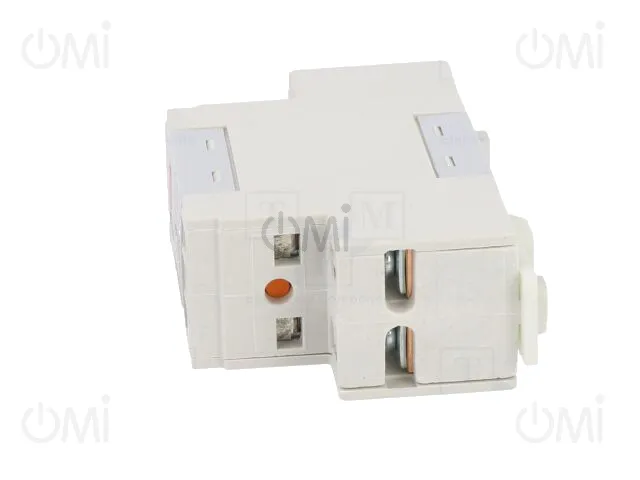

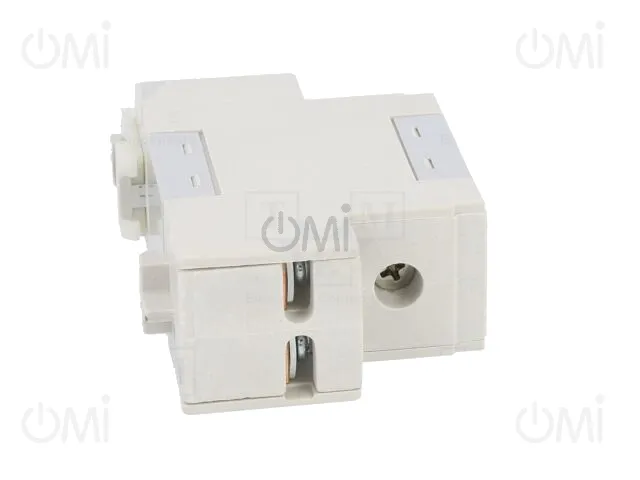

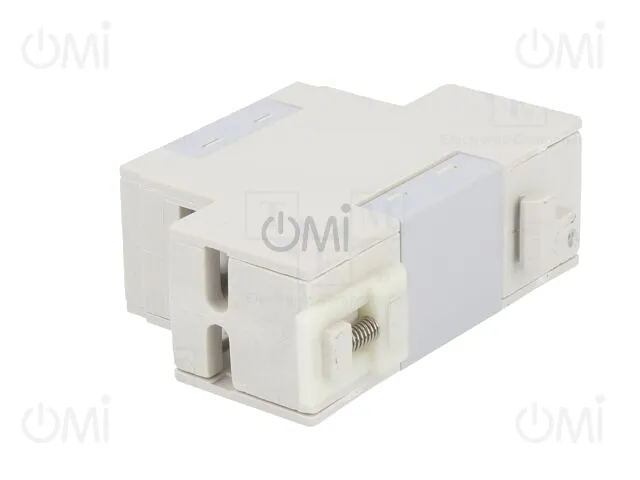

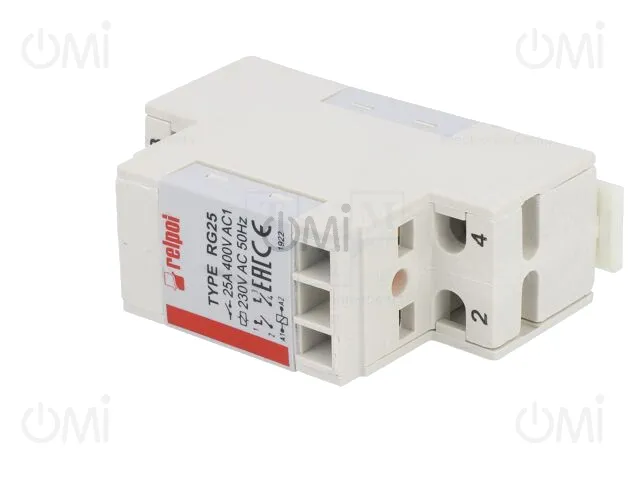

Relay: electromagnetic; DPST-NO; Ucoil: 230VAC; Icontacts max: 25A

Manufacturer code: RG25-3022-28-3230

OMI code: 89467

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

39 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 20.38
2+ 19.29
100+ 18.93

Price details
RG25-3022-28-3230

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 20.38
2+ 19.29
100+ 18.93

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
RELPOL
Mounting
for DIN rail mounting
Operating temperature
-25...85°C
Leads
screw terminals
Contacts configuration
DPST-NO
Body dimensions
26x53.7x75.5mm
Contact material
AgSnO<sub>2</sub>
Switched voltage
max. 250V DC, max. 440V AC
AC contacts rating @R
25A / 400V AC
DC contacts rating @R
25A / 24V DC
Type of relay
electromagnetic
Contact current max.
25A
Relay variant
industrial
Relay series
RG25
Coil resistance
6.8kΩ
Rated coil voltage
230V AC
Coil voltage min.
161V AC
Operate time
20ms
OEM number
862722
Max surge current
40A
Contact resistance
100mΩ
Coil voltage max.
253V AC
Release time
20ms
Coil power consumption
3VA
Gross weight 123.60 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Industrial Electromagnetic Relays
