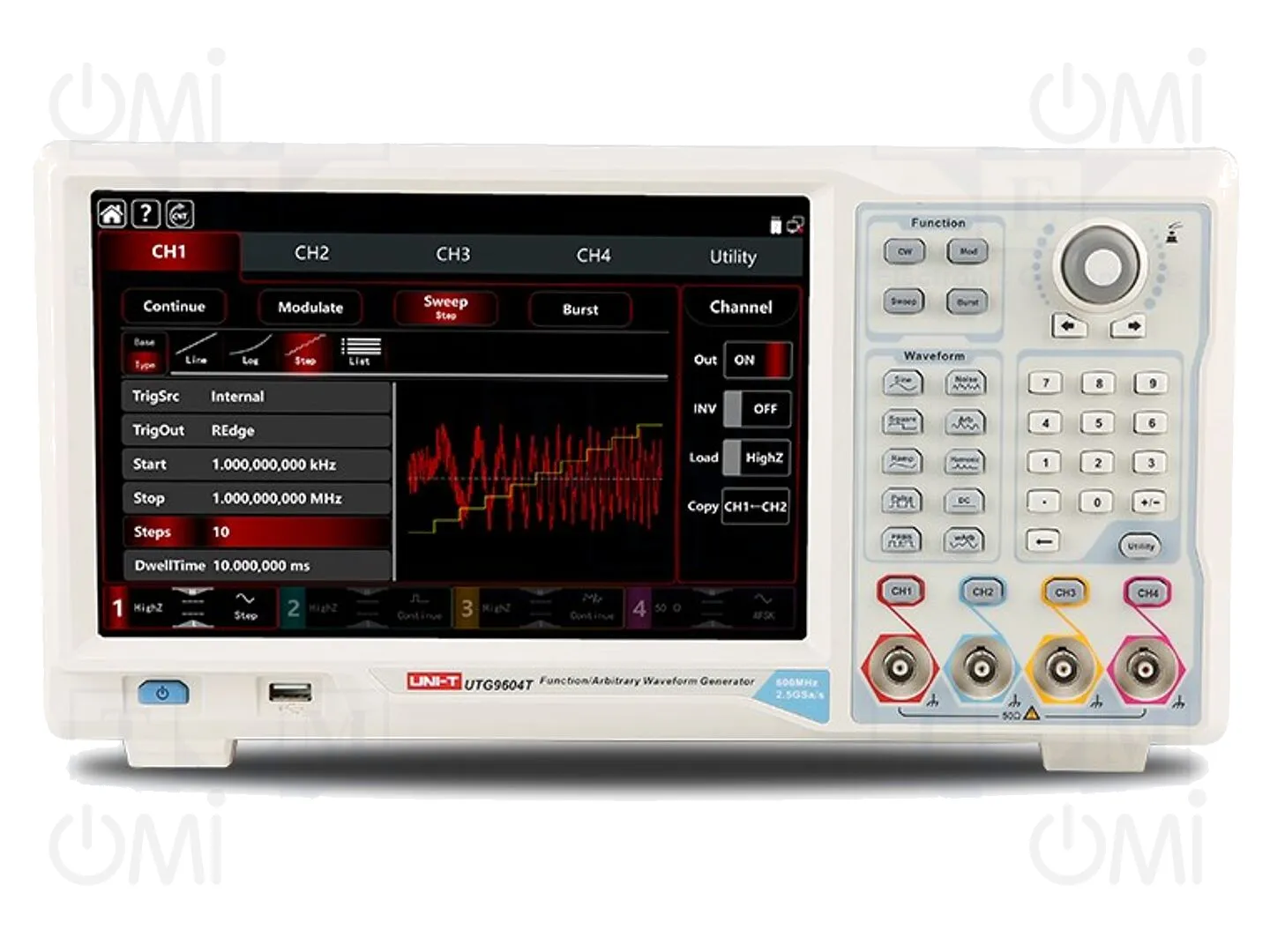

UTG9504T UNI-T

Details

UTG9504T
  • UTG9504T

Manufacturer product page UNI-T

Generator: arbitrary, function; 500MHz; 1280x800; Ch: 4

Manufacturer code: UTG9504T

OMI code: 92678

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4536

Price details
UTG9504T

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4536

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
UNI-T
Supply voltage
100...240V AC
Dimensions
370x115x185mm
Interface
USB, LAN
Number of channels
4
Kind of display used
LCD TFT 10,1", touch screen
Standard equipment
USB cable, mains cable, BNC cable - crocodile clip
Display resolution
1280x800
Communictions protocol
SPI, I2C, UART
Type of generator
arbitrary, function
Sampling
2,5Gsps
Vertical resolution
14bit
Maximum waveform frequency
500MHz
Waveform frequency range
1µHz...500MHz (sinus waveform), 1µHz...30MHz (ramp waveform), 1µHz...100MHz (arbitrary waveform), 1µHz...160MHz (pulse waveform), 1µHz...160MHz (square waveform)
Kind of modulation
AM, BPSK, FM, FSK, PM, PWM, ASK, PSK, QAM, SUM, QPSK, OSK
Waveforms
impulse, arbitrary, sinus, noise, ramp, DC, harmonic, square
Gross weight 3000.00 g
Documentation in English #1
