13469 HELUKABEL

Details

13469
  • 13469

Manufacturer product page HELUKABEL

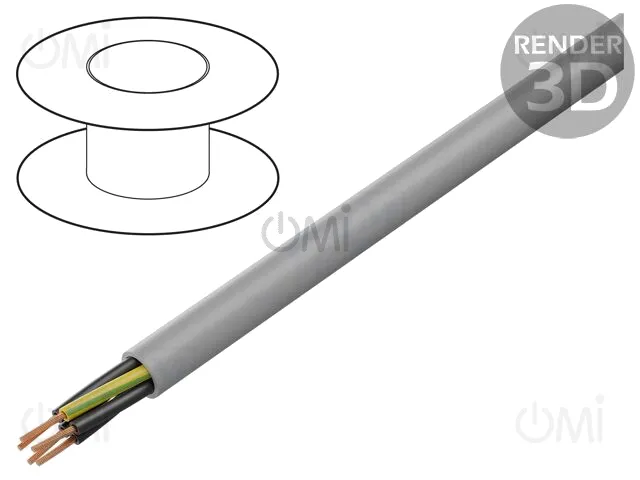

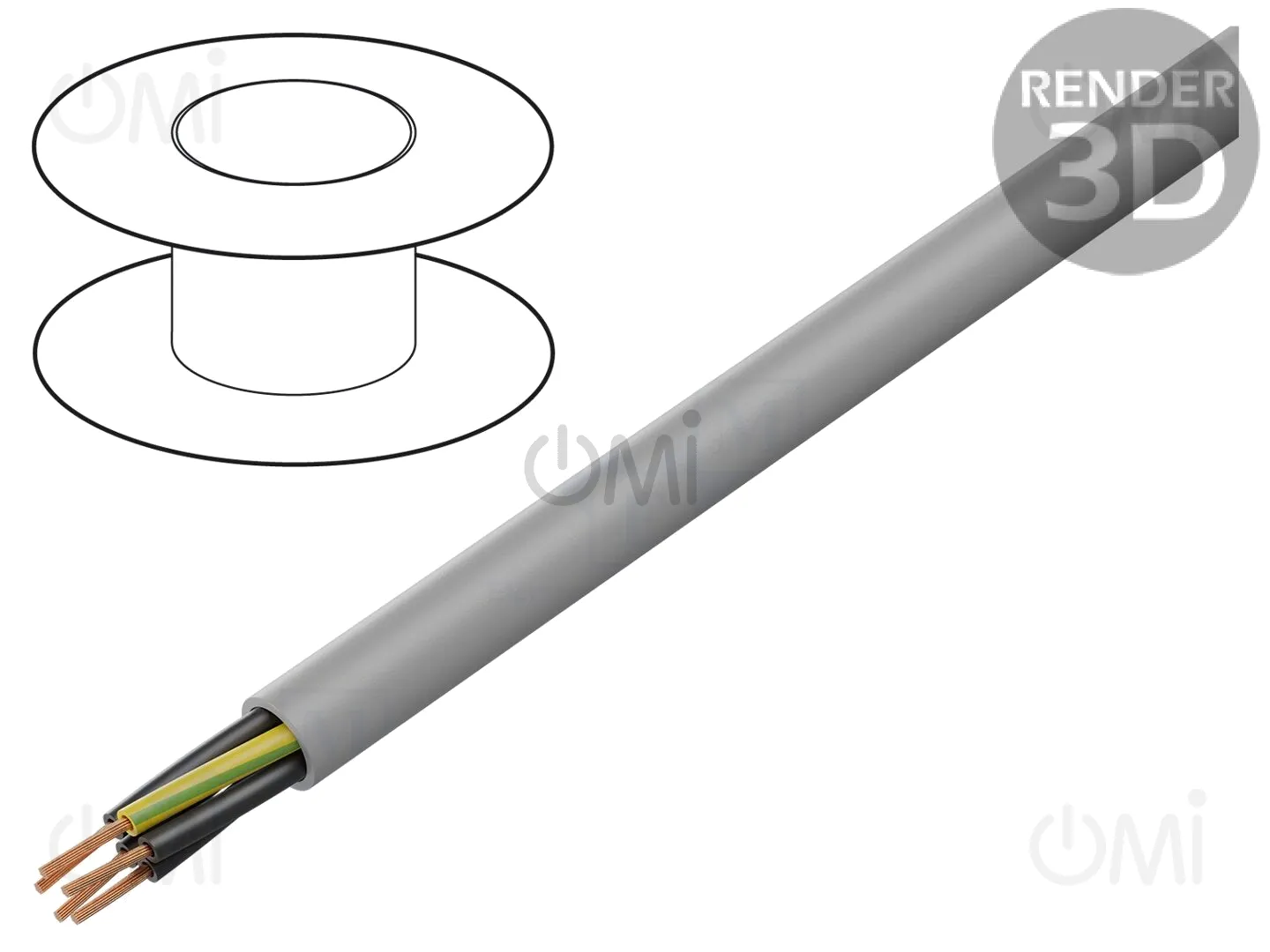

Wire; MEGAFLEX®500; 5G16mm2; unshielded; 300V,500V; Cu; stranded

Manufacturer code: 13469

OMI code: 95665

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 m

Qty.
[m] 		Price
[EUR/m]
1+ 45.7

Price details
13469

Qty.
[m] 		Price
[EUR/m]
1+ 45.7

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
HELUKABEL
Operating temperature
-30...80°C
Wire insulation material
LSZH
Type of wire
control cable
Number of cores
5
Resistance to
abrasion, abrasion, flame, most of oils, ozone, water
Insulation colour
grey
Cable application
industrial applications, power plant engineering, air-conditioning technology, maritime applications, mechanical engineering, wind turbine engineering
Kind of material
halogen free, no flame propagation
Kind of wire
MEGAFLEX®500
Kind of core
Cu
Core section
16mm<sup>2</sup>
Cable external diameter
21.9mm
Shield structure
unshielded
Rated voltage
500V, 300V
Core marking
black, numbered + ground wire
Core structure
stranded
Earth core
yellow-green
CPR standard
no classification
Cable structure
5G16mm<sup>2</sup>
Gross weight 1157.00 g
Documentation in English #1 Documentation in English #2
