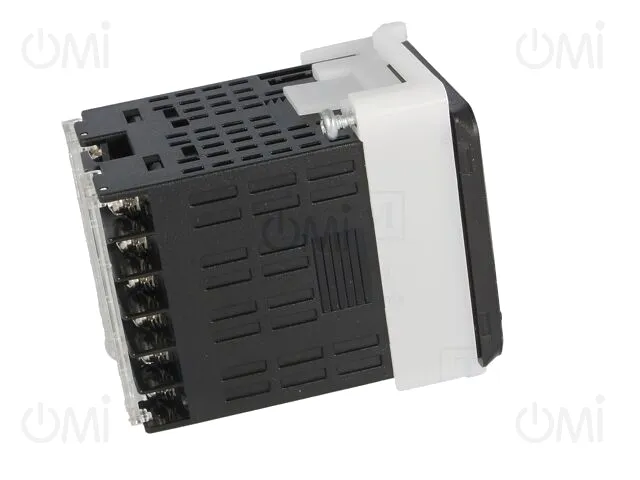

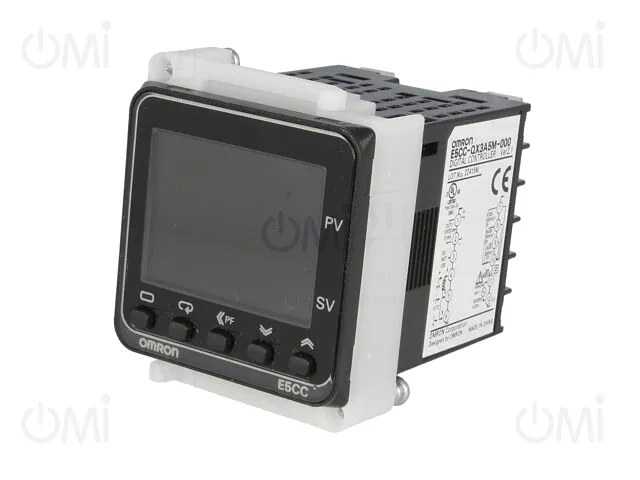

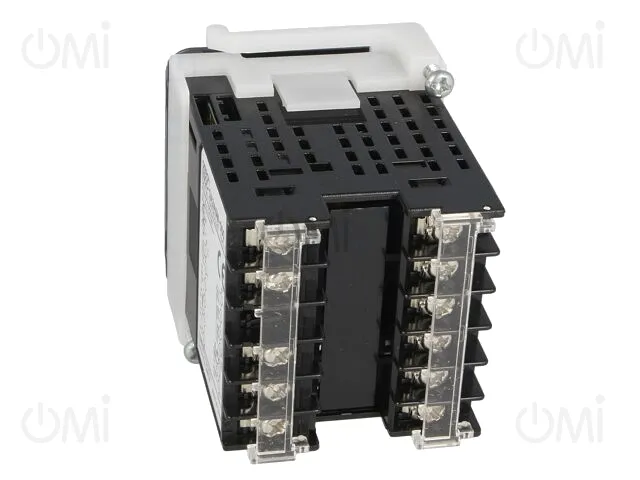

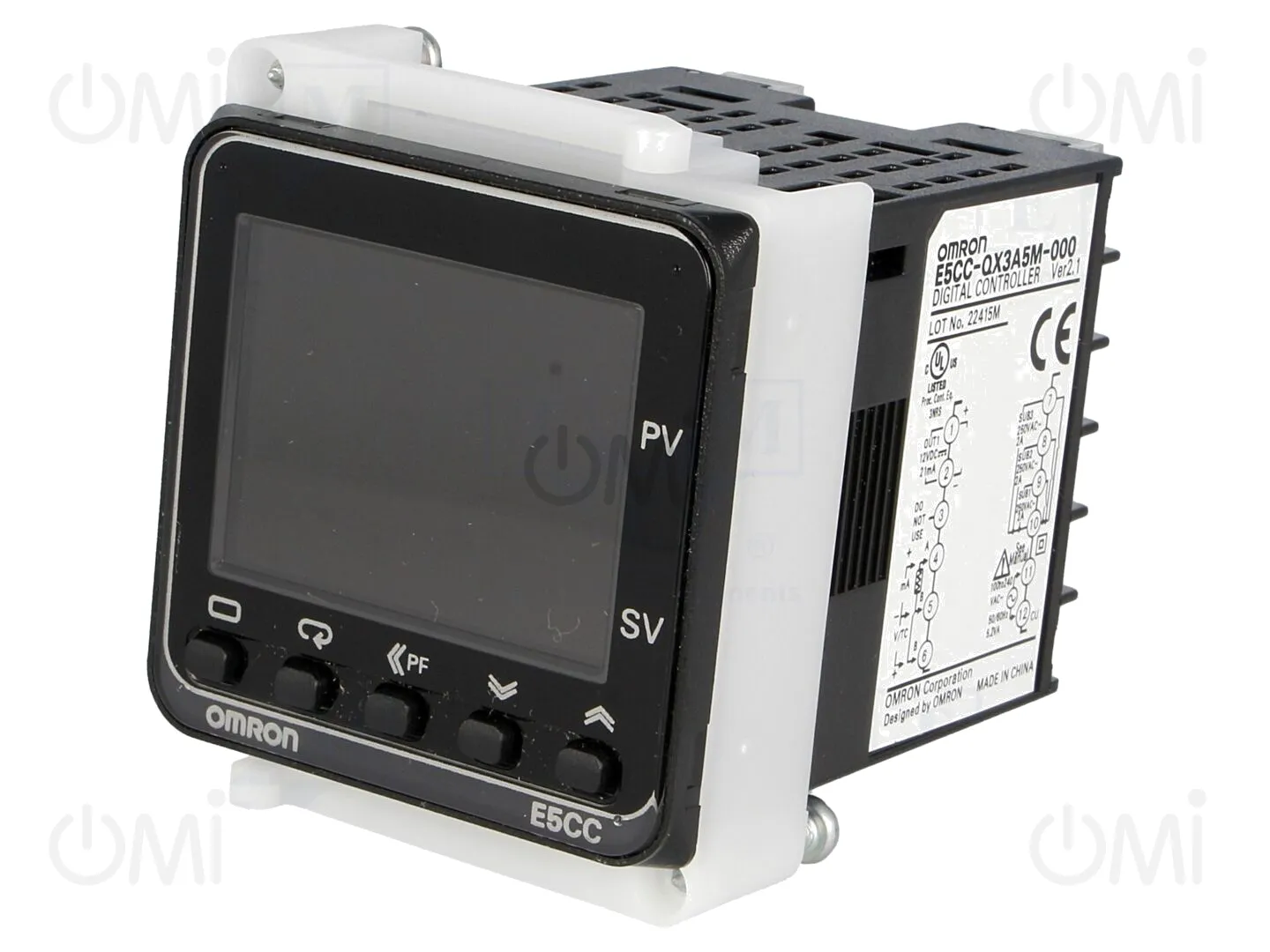

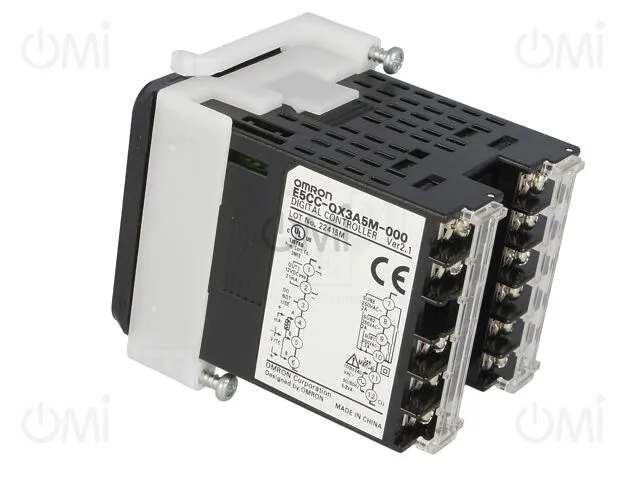

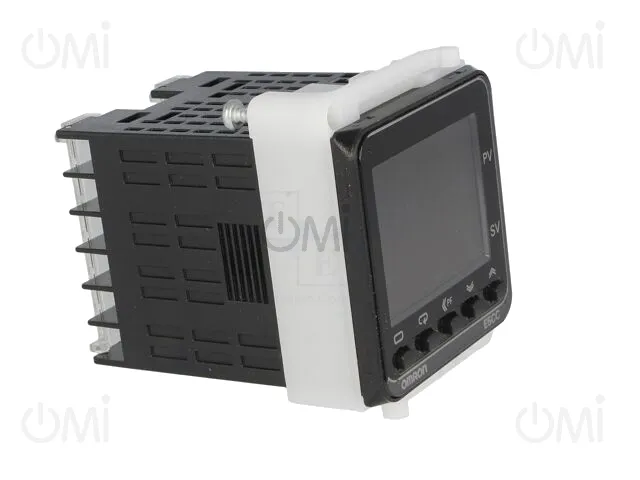

E5CC-QX3A5M-000 OMRON

Details

E5CC-QX3A5M-000
E5CC-QX3A5M-000
E5CC-QX3A5M-000
E5CC-QX3A5M-000
E5CC-QX3A5M-000
E5CC-QX3A5M-000
E5CC-QX3A5M-000
E5CC-QX3A5M-000
E5CC-QX3A5M-000
  • E5CC-QX3A5M-000
  • E5CC-QX3A5M-000
  • E5CC-QX3A5M-000
  • E5CC-QX3A5M-000
  • E5CC-QX3A5M-000
  • E5CC-QX3A5M-000
  • E5CC-QX3A5M-000
  • E5CC-QX3A5M-000
  • E5CC-QX3A5M-000

Manufacturer product page OMRON

Module: regulator; temperature; SSR; OUT 2: SPST-NO; OUT 3: SPST-NO

Manufacturer code: E5CC-QX3A5M-000

OMI code: 96699

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

8 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 264.96

Price details
E5CC-QX3A5M-000

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 264.96

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
OMRON
Mounting
on panel
Operating temperature
-10...55°C
IP rating
IP66 (from the front)
Manufacturer series
E5CC
Supply voltage
100...240V AC
Body dimensions
48x48x64mm
Mounting hole diameter
45x45mm
Type of module
regulator
Kind of display used
LCD
Kind of output 1
SSR
The programming method
keypad
Additional functions
heating or cooling control
Controlled parameter
temperature
Kind of temperature sensor
JPt100, Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple L, thermocouple N, thermocouple PLII, thermocouple R, thermocouple S, thermocouple T, thermocouple U, thermocouple W
Regulation for output 1
ON-OFF, 2PID
Output 1 electrical parameters
12V DC / 21mA
Controlled parameter range
-1999...9999
Input 1 properties
analogue voltage, current analog, thermocouple
Display height 1
15.2mm
Display 2 height
7.1mm
Kind of output 2
SPST-NO
Kind of output 3
SPST-NO
Output 2 electrical parameters
250V AC / 2A
Output 3 electrical parameters
250V AC / 2A
Kind of output 4
SPST-NO
Output 4 electrical parameters
250V AC / 2A
Gross weight 142.20 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Temperature Regulators
