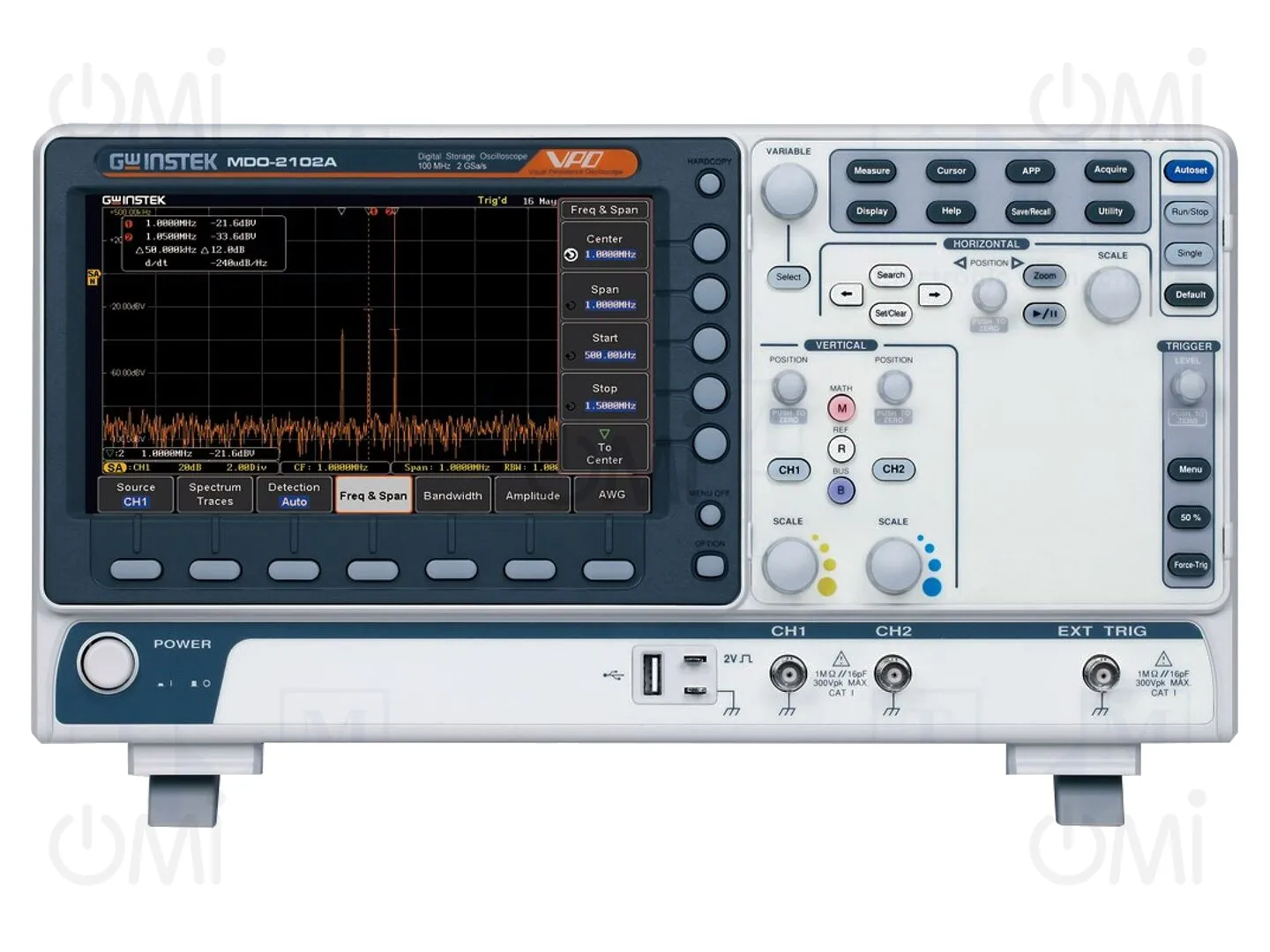

MDO-2102A GW INSTEK

Details

MDO-2102A
  • MDO-2102A

Manufacturer product page GW INSTEK

Oscilloscope: digital; MDO; Ch: 2; 100MHz; 2Gsps (in real time)

Manufacturer code: MDO-2102A

OMI code: 105901

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 994.42

Price details
MDO-2102A

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 994.42

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
GW INSTEK
Manufacturer series
MDO-2000A
Supply voltage
100...240V AC
Dimensions
384x208x127.3mm
Interface
LAN, USB device, USB 2.0 host, Go/NoGo BNC
Number of channels
2
Kind of display used
LCD TFT 8"
Additional functions
spectrum analyzer
Standard equipment
test leads, mains cable, oscilloscope probe (1 per channel), test leads with crocodile clips, cable BNC-BNC x2
Measuring instrument features
20 sets memory, mathematical functions: addition, subtraction, division, multiplication and FFT, Y-T, X-Y, ROLL operation mode, EF function - electrical field detecion, mask testing, segmented memory function, support I2C, SPI, UART, CAN, LIN BUS trigger and decoding functions
Input impedance
1MΩ/16pF
Display resolution
800x480
Measurement memory
24
Sampling
2Gsps (in real time)
Band
100MHz
Trigger
rising-edge, falling-edge, video signal, alternative, runt, with delay, bus, glitch
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Vertical resolution
8bit
Trigger modes
automatic, normal, single
Trigger coupling
AC, DC, highpass, lowpass
Max. input voltage
300V
Rise time
≤3.5ns
Input sensitivity
1mV/div...10V/div
Time base
1n...100s/div
Memory record length
20Mpts/ch
Kind of oscilloscope
MDO
Gross weight 4115.60 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Digital Oscilloscopes
