CIE LCR58 CIE

Details

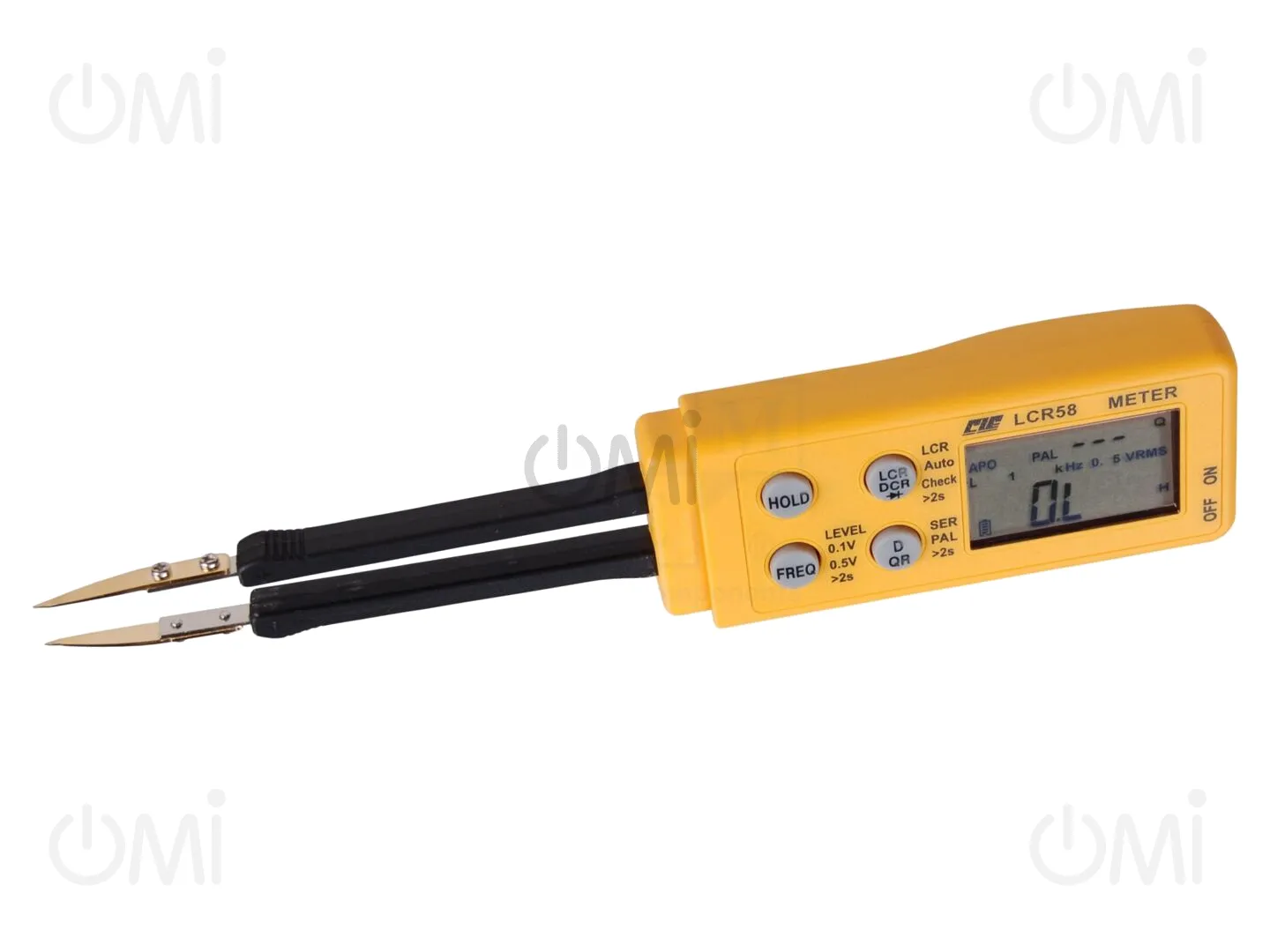

CIE LCR58
  • CIE LCR58

Manufacturer product page CIE

Tester: electronic components; LCD; (6000); Sampling: 2x/s; 0.8mA

Manufacturer code: CIE LCR58

OMI code: 109641

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 82.05

Price details
CIE LCR58

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 82.05

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
CIE
Body dimensions
40x24.5x205mm
Kind of display used
LCD
Power supply
battery CR2032 3V x2
Measuring instrument features
automatic power-off, low battery indicator, HOLD function, alarms breach of limit values
Display parameters
(6000)
Measurement
resistance, capacitance, inductance, impedance
Test
diodes
Measuring instruments application
for testing SMD components
Sampling
2x/s
Resistance measuring range
6kΩ, 20MΩ, 60kΩ, 6MΩ, 600Ω, 600kΩ, 60Ω
Capacitance measuring range
6nF, 60nF, 600µF, 6mF, 600nF, 6µF, 60µF, 0.1...600pF
Diode test
0.8mA
Resistance measuring accuracy
±(1%+5 digit)
Capacitance measuring accuracy
±(1%+ 5 digit)
Type of tester
electronic components
Inductance measuring range
0.1...600µH, 6mH, 60mH, 600mH, 6H, 60H, 200H
Inductance measuring accuracy
±(1% + 5 digit)
Loop impedance measuring range
60Ω, 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 20MΩ
Loop impedance measuring accuracy
±(1% + 5 digit)
Gross weight 144.75 g
