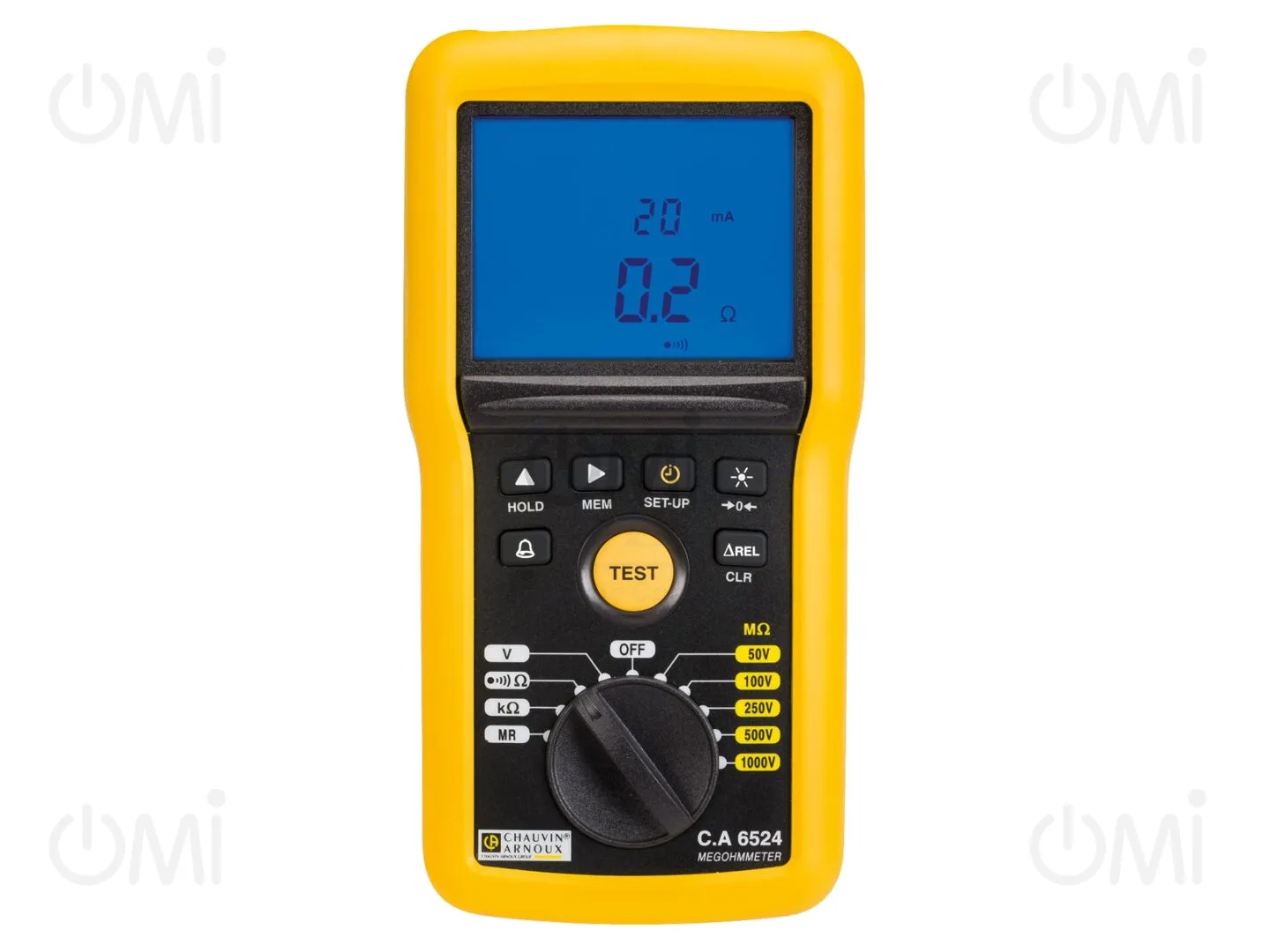

C.A 6524 CHAUVIN ARNOUX

Details

C.A 6524
  • C.A 6524

Manufacturer product page CHAUVIN ARNOUX

Meter: insulation resistance; LCD; (4000); VAC: 300mV÷400V,700V

Manufacturer code: C.A 6524

OMI code: 143101

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 834.95

Price details
C.A 6524

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 834.95

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
CHAUVIN ARNOUX
IP rating
IP54
Conform to the norm
CAT IV 600V, IEC 61010-1, IEC 61326-1, EN 61243-3:2010, IEC 61010-2-030
Body dimensions
211x108x60mm
Kind of display used
LCD
Power supply
battery LR6 AA 1,5V x6
Standard equipment
test leads, carrying case, crocodile clip, test probe x1
Display parameters
(4000)
Type of meter
insulation resistance
Measurement memory
300
Battery/ rechargeable battery
battery LR6 AA 1,5V x6
Weight without batteries
850g
Continuity test
<100Ω, <10Ω
Bargraph
yes
Resistance measuring range
1MΩ, 40kΩ, 4kΩ, 400kΩ
DC voltage measuring range
300mV...400V, 700V
AC voltage measuring range
700V, 300mV...400V
DC voltage measuring accuracy
±(3% + 2 digit)
Resistance measuring accuracy
±(3%+2 digit)
Test voltage
50V, 100V, 250V, 500V, 1kV
Insulation resistance measuring ranges
40MΩ, 400MΩ, 4GΩ, 10...999kΩ, 4MΩ, 40GΩ, 200GΩ
Insulation resistance measuring accuracy
±(3% + 2digit)
Gross weight 1427.60 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4 Documentation in English #5

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Insulation Resistance Meters
