525594052 MOLEX

Details

525594052
525594052
525594052
525594052
525594052
525594052
525594052
525594052
525594052
  • 525594052
  • 525594052
  • 525594052
  • 525594052
  • 525594052
  • 525594052
  • 525594052
  • 525594052
  • 525594052

Manufacturer product page MOLEX

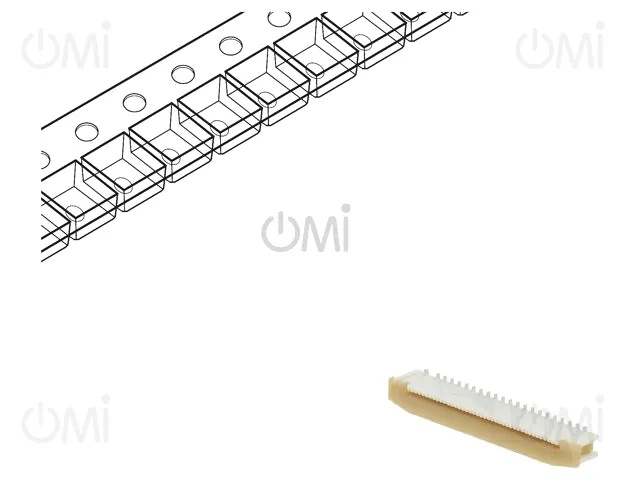

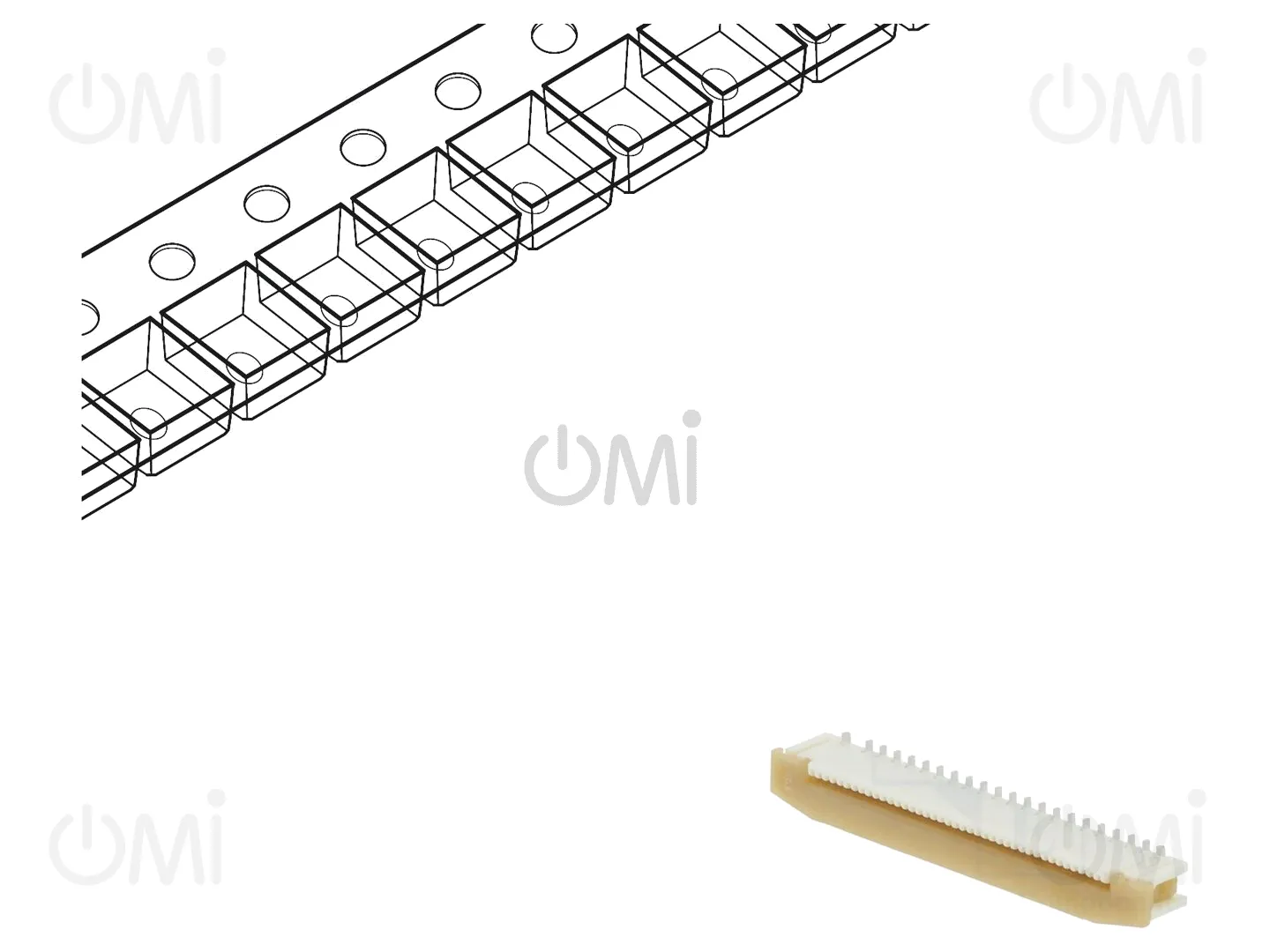

Connector: FFC/FPC; vertical; PIN: 40; ZIF; SMT; Slider; 50V; 500mA

Manufacturer code: 525594052

OMI code: 200527

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

926 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.02
7+ 2.78
15+ 2.63

Price details
525594052

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.02
7+ 2.78
15+ 2.63

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
MOLEX
Operating temperature
-40...85°C
Current rating
0.5A
Flammability rating
UL94V-0
Number of pins
40
Connector series
Slider
Contact plating
gold-plated
Body material
polyamide
Contact material
phosphor bronze
Connector variant
ZIF
Ribbon cable pitch
0.5mm
Electrical mounting
SMT
Type of connector
FFC/FPC
Spatial orientation
vertical
Rated voltage
50V
Gross weight 0.76 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Connectors FFC/FPC 0.5mm
