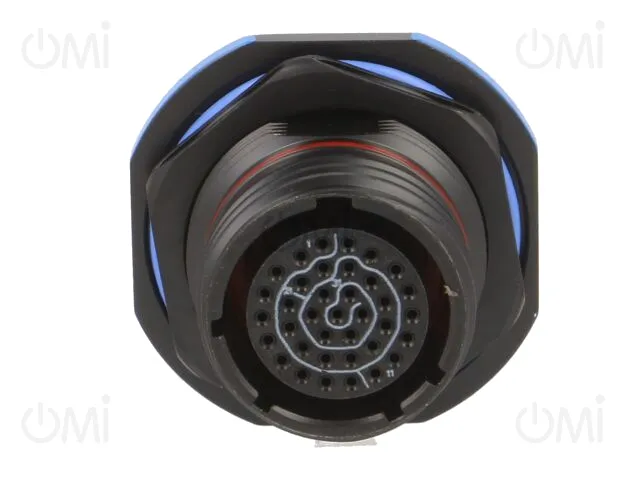

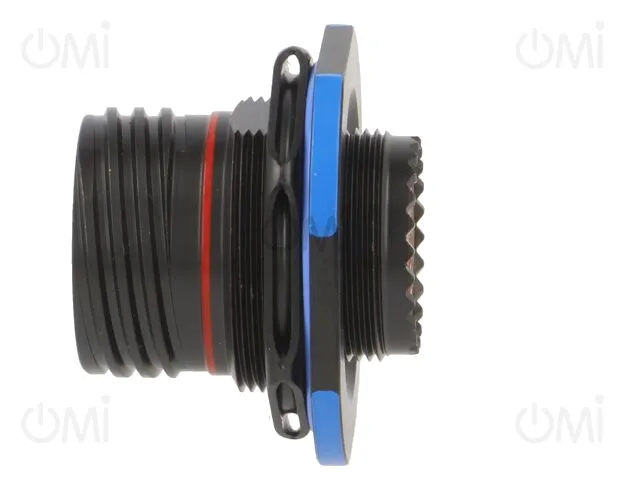

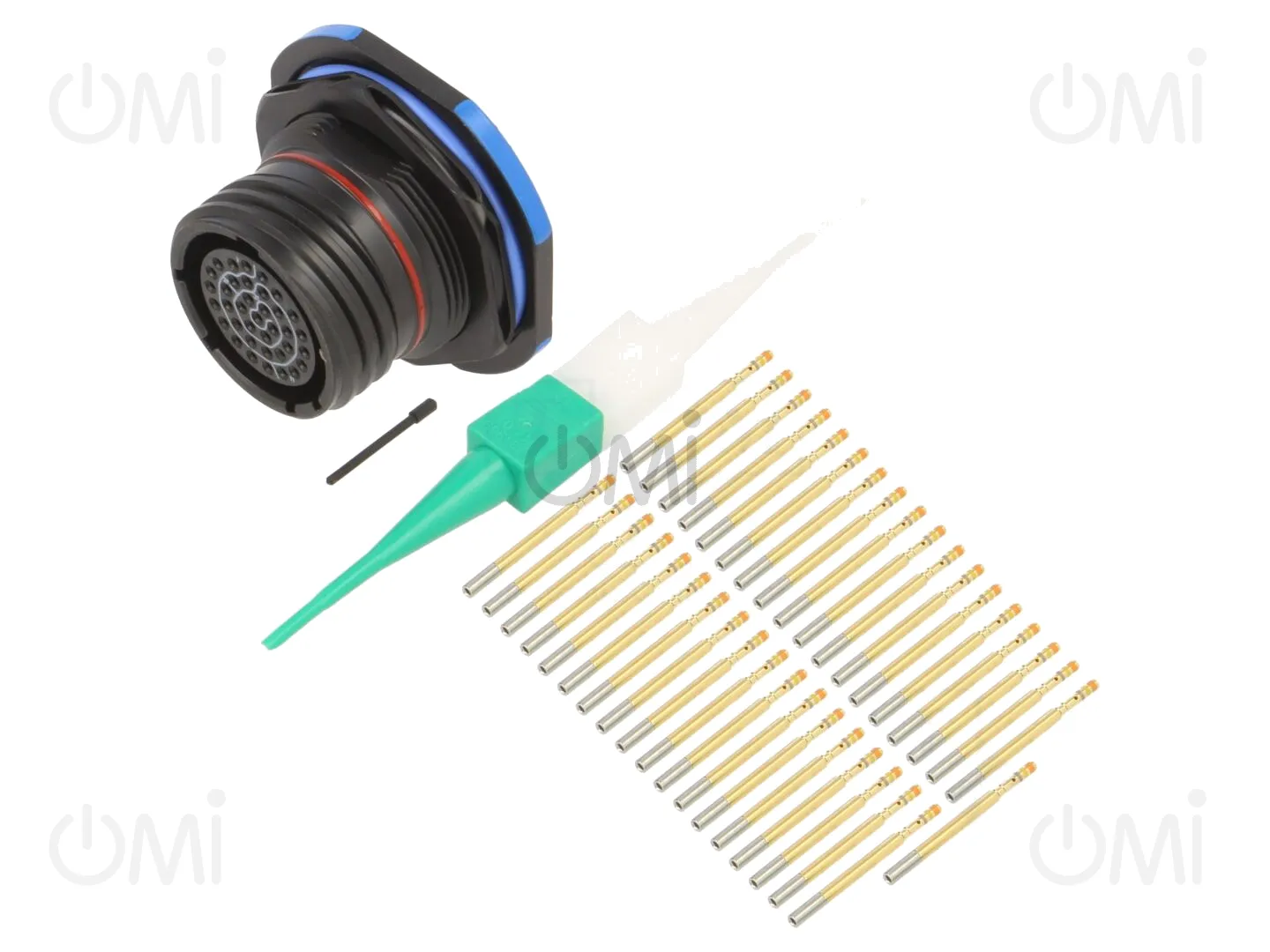

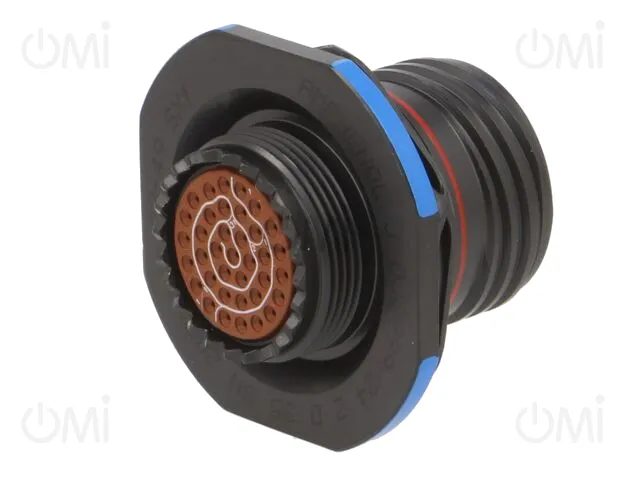

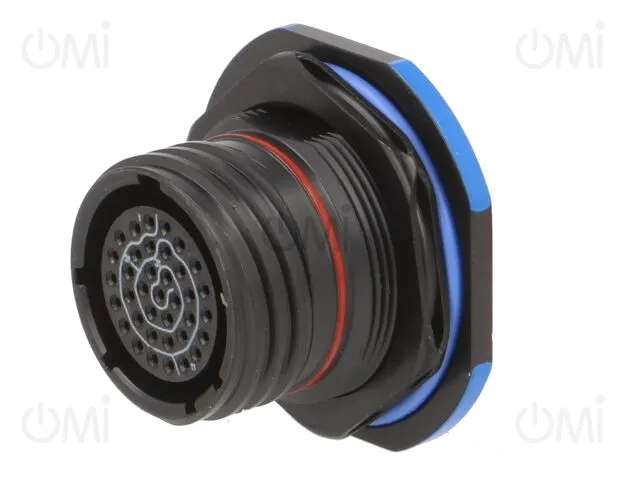

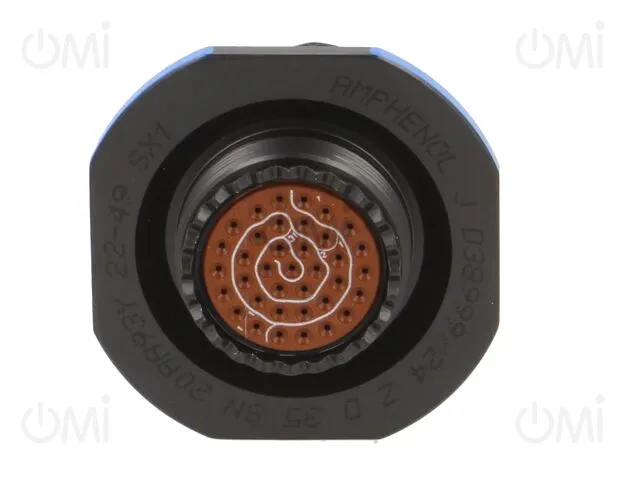

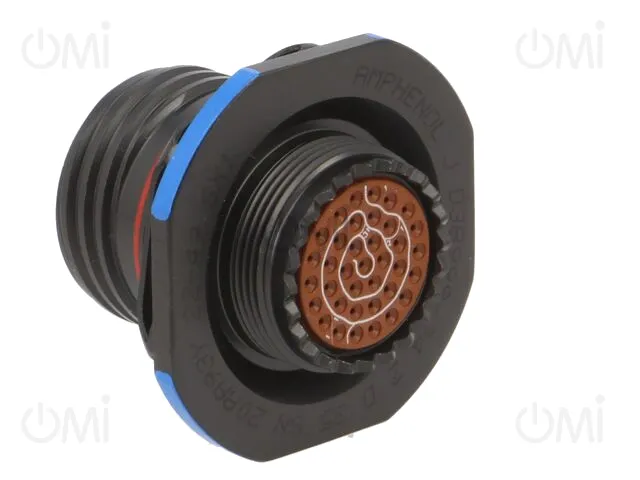

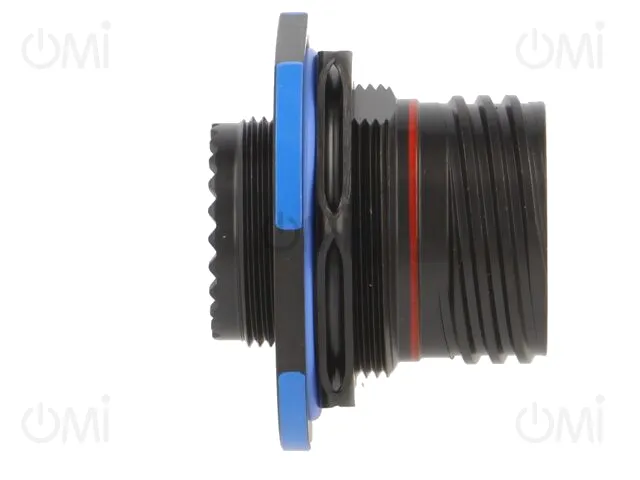

D38999/24ZD35SN AMPHENOL AIR

Details

D38999/24ZD35SN
D38999/24ZD35SN
D38999/24ZD35SN
D38999/24ZD35SN
D38999/24ZD35SN
D38999/24ZD35SN
D38999/24ZD35SN
D38999/24ZD35SN
D38999/24ZD35SN
  • D38999/24ZD35SN
  • D38999/24ZD35SN
  • D38999/24ZD35SN
  • D38999/24ZD35SN
  • D38999/24ZD35SN
  • D38999/24ZD35SN
  • D38999/24ZD35SN
  • D38999/24ZD35SN
  • D38999/24ZD35SN

Manufacturer product page AMPHENOL AIR

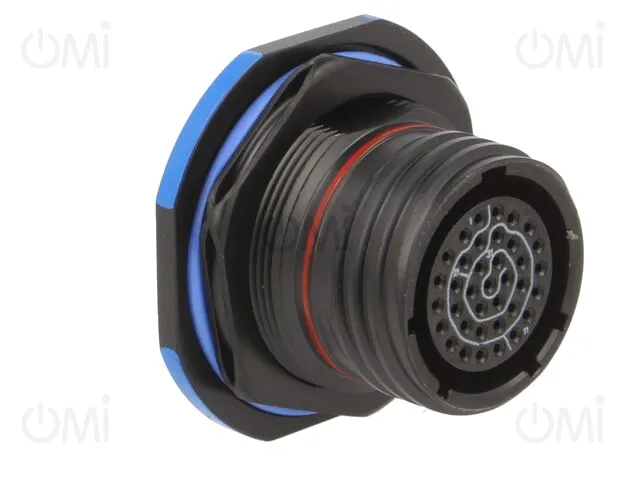

Connector: military; size 15; MIL-DTL-38999 Series III; black

Manufacturer code: D38999/24ZD35SN

OMI code: 337330

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 75.88

Price details
D38999/24ZD35SN

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 75.88

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
AMPHENOL AIR
Current rating
5A
Number of pins
37
Connector series
MIL-DTL-38999 Series III
Case
size 15
Conform to the norm
MIL-DTL-38999, Military Standard
Colour
black
Contact plating
gold-plated
Kind of connector
female
Enclosure material
aluminium alloy
Connector
socket
Connector variant
with contacts
Wire cross-section
0.095...0.38mm<sup>2</sup>
Locking system
external thread, threaded joint
Electrical mounting
crimped
Mechanical mounting
for panel mounting, front side nut, screwed
Wire size
28AWG...22AWG
Type of connector
military
Spatial orientation
straight
Body coating
zinc nickel plated
Contact size
22D
Gross weight 49.18 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: D38999 Series III connectors
